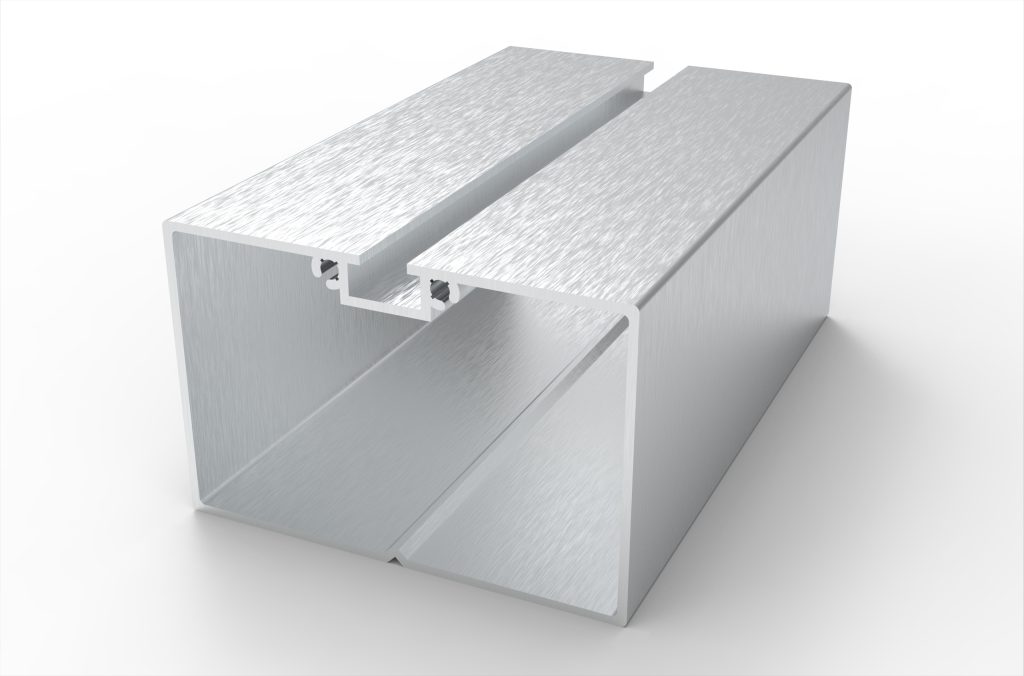

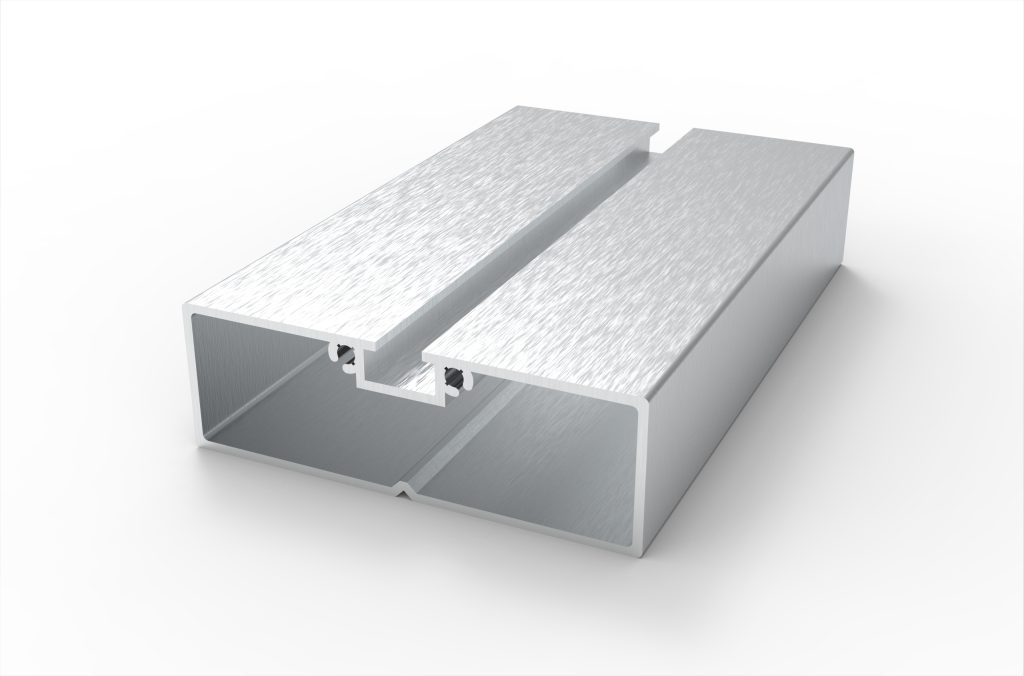

Aluminium Planter Rail 3.6m
Prefabricated aluminium planter rail in 3.6m lengths for use with the Metal Planters adjustable pedestal system. Manufactured from 6063 T6 grade aluminium with a mill finish. This aluminium planter rail is non-combustible and fire rated to A1 standards to BS EN 13501. Available in 3 height options: 30mm, 50mm, and 75mm. Mechanically fixed using M8 wing nuts. From £46.33.
Description
The Aluminium Planter Rail 3.6m is a prefabricated structural profile used in conjunction with the Metal Planters adjustable fire rated pedestal system to form the sub-frame of the Planter Substrate System. This aluminium planter rail provides the primary horizontal connection between pedestals, creating a rigid, level framework onto which planter bases, decking boards, or other surface materials are installed.
Manufactured from 6063 T6 grade aluminium, this aluminium planter rail will not warp, rust, or bend. The 6063 T6 alloy delivers an excellent strength-to-weight ratio, allowing the aluminium planter rail to produce long spans between pedestals. This spanning capability has been tried and tested with specific weight calculations to ensure reliable structural performance under load.
The aluminium planter rail is non-combustible and carries an A1 fire rating to BS EN 13501 (BS EN 13824). This is the highest possible fire classification for a construction material, meaning this aluminium planter rail will not contribute to fire in any way. For projects where fire safety compliance is essential, specifying an A1 rated aluminium planter rail provides the strongest possible fire performance evidence for building control submissions.
The aluminium planter rail is available in 3 different height options: 30mm, 50mm, and 75mm. The taller the aluminium planter rail, the greater the span it can achieve between pedestals. This allows specifiers to choose the right aluminium planter rail height based on their project's pedestal spacing requirements and loading conditions.
Each aluminium planter rail is mechanically fixed to the pedestal headpieces using M8 wing nuts, providing a secure, tool-free connection that can be adjusted on site during installation. All aluminium planter rail sections are supplied in a mill finish as standard.
Material: 6063 T6 Grade Aluminium
Fire Rating: A1 to BS EN 13501 (BS EN 13824)
Length: 3.6 metres
Finish: Mill Finish
Fixing: M8 Wing Nuts
Benefits & Features
* Prefabricated aluminium planter rail in 3.6m lengths for efficient coverage
* Manufactured from 6063 T6 grade aluminium with mill finish
* Aluminium planter rail is non-combustible with A1 fire rating to BS EN 13501
* 3 height options for the aluminium planter rail: 30mm, 50mm, and 75mm
* Taller aluminium planter rail profiles enable greater spans between pedestals
* Aluminium planter rail will not warp, rust, or bend in outdoor conditions
* Mechanically fixed to pedestals using M8 wing nuts for tool-free connection
* Aluminium planter rail tested with specific weight calculations for structural reliability
* Can be cut to length on site using standard aluminium cutting tools
* Aluminium planter rail integrates with the full Metal Planters pedestal system
* Distributes planter weight evenly to protect waterproof membranes
* Ideal aluminium planter rail for rooftop, balcony, and terrace sub-frame construction
Size
| Code | Length | Height | Material | Fire Rating | Price |
|---|---|---|---|---|---|
| APR-30 | 3600mm | 30mm | 6063 T6 Aluminium | A1 (BS EN 13501) | From £46.33 |
| APR-50 | 3600mm | 50mm | 6063 T6 Aluminium | A1 (BS EN 13501) | Contact for price |
| APR-75 | 3600mm | 75mm | 6063 T6 Aluminium | A1 (BS EN 13501) | Contact for price |
